Home>fiber optic cable>Armored Fiber Optic Cable>new 8 core fibre optics cable

new 8 core fibre optics cable

2 core 4 core 6 core 8 core 12 core fibre optics cable

Options:Armored fiber optic cable

             Unarmored fiber optic cable

Options:Corning fibers

              YOFC fibers

Certification:CE/ISO9001/RoHS

Inquiry

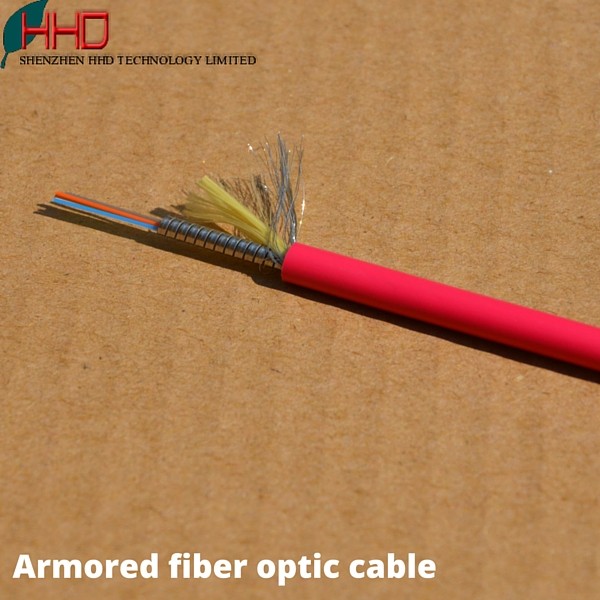

new 8 core fibre optics cable

Details

fibre optics core:8 core cable

Fibre optics type:mulitmode om3 8 core fibre optics cable

Cable OD.:5.0mm fibre optics cable

Cable Jacket:LSZH PVC cable

Cable Type:armored fiber optic cable/Rodent cable

Applictiaon:telecommunication



Application:

1.Pigtails and patch cords
2.Connections of optical communication equipment rooms, distribution frames and FTTX
3.Optical appliances connection
4.Indoor horizontal or vertical cabling, multi-medium connection, LAN
5.Connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
6.Telecommunication
7. CATV
8. Network
9.Broadband





8 core armored fibre optics cable specification

Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5



Cable
Count		 ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT
(kg)		 MAXIMUM TENSILE BEND RADIUS*    L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000





ORIGINAL MANUFACTURER PROVIDE YOU HIGH QUALITY OPTICAL FIBER CABLES_HHD

-------------------------------------------------------------------------------------------------------------------------------------------

OPTICAL FIBER CABLE      FIBER PATCH CABLES      SPCIAL ARMORED FIBER CABLE

1 Core Simplex                            FC-FC 1 Core SM                     4.2mm 12core Armored  Fiber Cable

2 Core Duplex                              LC-LC 2 Core OM3                    3.0mm  MPO Armored Fiber Cable

4 Core Optical Cable                    LC-LC 4 Core OM3                    4.8mm 2 Core Armored Fiber Cable

6 Core Optical Cable                    LC-LC 6 Core SM                       7.0mm Armored Cable without Fibers

8 Core Optical Cable                    FC-FC 12 Core SM

12 Core Optical Cable                  SC/APC 2 Core Zip type
