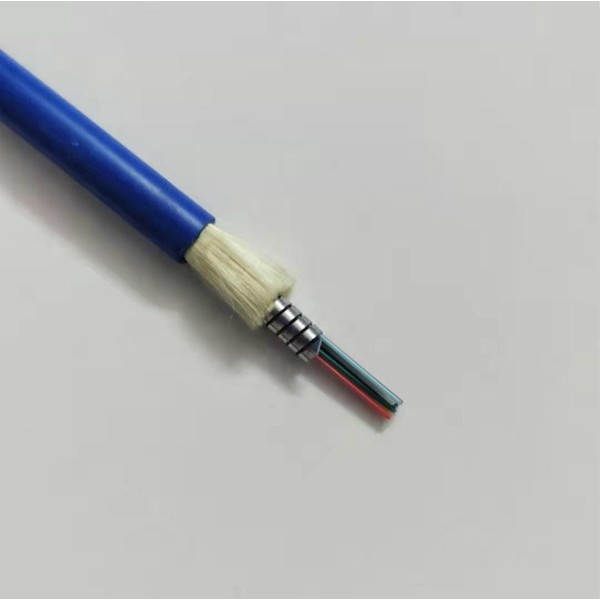

hhd ftth 12 core Multicore optical fibre flexible armored cable

1.Soft, flexible, Stable, easy to splice!

2.For Both indoor outdoor use!

3.mouseproof,moistureproof,dustproof,excellent environmental characteristics!

4.excellent products and competitive price!

Inquiry

multicore



APPLICATIONS

*Apply to all types of optical connectors

*Apply to pigtails and patch cords

*Apply to connectors in optical communication equipment rooms, distribution frames and FTTX

*Apply to optical appliances connection

*Apply to indoor horizontal or vertical cabling, multi-medium connection, LAN

*Apply to connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic

*Apply to high density cabling


FEATURES

*Good mechanical and environmental characteristics

*Soft, flexible, Stable, easy to splice

*Flame retardant characteristics meet the requirements of relevant standards

*Improve existing function based on customers’ various requirements



 CABLE PARAMETERS

STRUCTURE SIZE (TABLE ONE)

Cable Count ITEM CABLE OD.mm(a) S.S.T.OD.mm(b) T.B.O.F.OD.mm(C)
12 3  Φ3.0±0.2  Φ2.0±0.02  Φ0.25
12 3.5  Φ3.5±0.2  Φ2.2±0.03  Φ0.25
12 4.2  Φ4.2±0.2  Φ2.2±0.05  Φ0.25



MECHANICAL PROPERTIES(TABLE TWO)



ITEM CABLE OD.
mm(a)
CABLE WEIGHT MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn.  Sta
3  Φ3.0±0.1 11.2 400 200 60 30 3500
3.5  Φ3.5±0.2  15.4 800 400 70 35 3000
4.2  Φ4.2±0.2 18.7 1000 500 90 40 3000



*All the values in the table two are for reference only

*The bending radius of G657 series fiber will be less than 15mm
