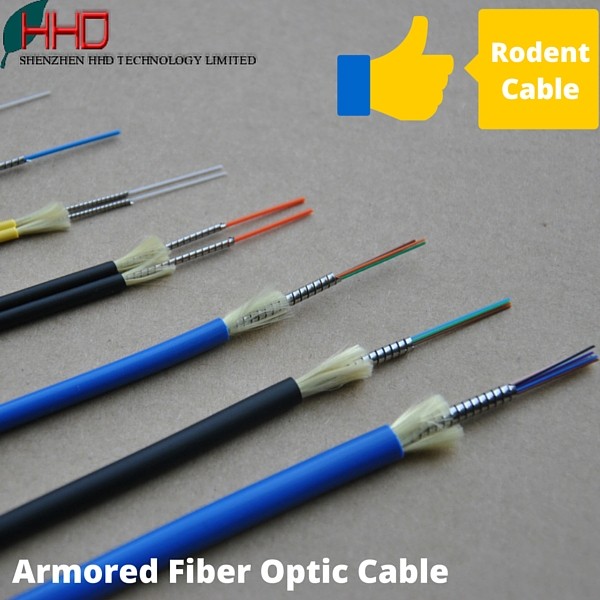

G657A1 G657A2 OM1 OM2 OM3 5.5mm armoured 12 core fiber optic cable

1.G657A1 G657A2 OM1 OM2 OM3 5.5mm armoured 12 core fiber optic cable

2.Spiral steel tube protect fibers

3.Good quality

4.Factory price

Inquiry

G657A1 G657A2 OM1 OM2 OM3 5.5mm armoured 12 core fiber optic cable

Options:

Corning fibers

YOFC fibers



Good performance

1.High return loss
2. Low insertion loss
3. Patch cord Passed RoHS,ISO9001
4. LZSH or PVC jacket
5. CCTC A Type optical fiber Ferrule
6. Fiber Connector Options:FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
7.Polishing Options: PC/UPC/APC

Specifications&Performances 1)

Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
4F 4.5MM Φ4.5±0.2 Φ2.4±0.02 Φ0.5
6F 4.5MM Φ4.5±0.2 Φ2.6±0.03 Φ0.5
8F 5.0MM Φ5.0±0.2 Φ2.8±0.05 Φ0.5
10F 5.0MM Φ5.0±0.25 Φ3.0±0.05 Φ0.5
12F 5.5MM Φ5.5±0.25 Φ3.2±0.05 Φ0.5
24F 7.0MM Φ7.0±0.3 Φ4.3±0.05 Φ0.5

  Specifications&Performances 2)

Cable
Count		 ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT
(kg)		 MAXIMUM TENSILE BEND RADIUS*    L.P.
N/100mm
S.T. L.T. Dyn. Sta.
4F 4.5MM Φ4.5±0.2 26.5 800 400 70 35 3000
6F 4.5MM Φ4.5±0.2 38.5 1000 500 100 50 3000
8F 5.0MM Φ5.0±0.2 33.0 1000 501 100 50 3000
10F 5.0MM Φ5.0±0.25 36.0 1000 502 120 60 3000
12F 5.5MM Φ5.5±0.25 39.0 1200 600 150 75 3000
24F 7.0MM Φ7.0±0.3 54.0 1500 750 170 85 3000



Application

1. Telecommunication
2.Communication equipment rooms, FTTX
3.Optical appliances connection
4.LAN
5.building cabling
6.Pigtails and patch cords
7. CATV
8. Network
9. Broadband



Features

1.Mouseproof, Anti-Tensile,Anti-pressure,
2.Resistant  Improper reverse bending damage,
3.Easy Construction,
4.Saving maintenance costs;

5.Adapt to harsh environments and man-made damage
