7.0mm armoured fiber optic cable without fibers

1.High quality

2.Mouseproof

3.RoHS

Inquiry

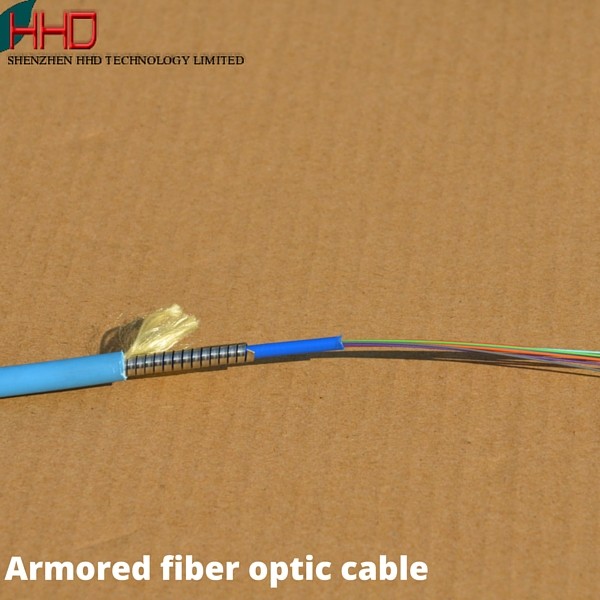

7.0mm armoured fiber optic cable without fibers



Applications

*Used in FTTX,from residence to data center and cabling level and vertical,also used in FTTH cable

*Use in communication in date center,during ODF witharmored patch cord and pigtail.

*Used in the open field,connections betwween optical equipments,

*Used in base station,for BBU to RRU.



Features

Multi-bare fibers used,to decrease the outer diameter and cable weight,also convenient for laying and splice,

Cable using high property aramid yarn,

Increasing tension property,and fit for long distanc use.

Cable using spiral metal armored layer with best crush property,and cable is very flexible and easy bend,

Cable using metal braid,increasing twist property and tension property,

All kinds of jacket material fit for any different environments.



Constuction



ITEM CABLE OD.
mm(a)
Inner Cable OD. mm(a) CABLE
 WEIGHT
(kg)
MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn.  Sta
7.0mm Φ7.0±0.2 3.2 60 1000 500 100 50 3000
