1.Soft, flexible, Stable, easy to splice!
2.For Both indoor outdoor use!
3.mouseproof,moistureproof,dustproof,excellent environmental characteristics!
4.excellent products and competitive price!

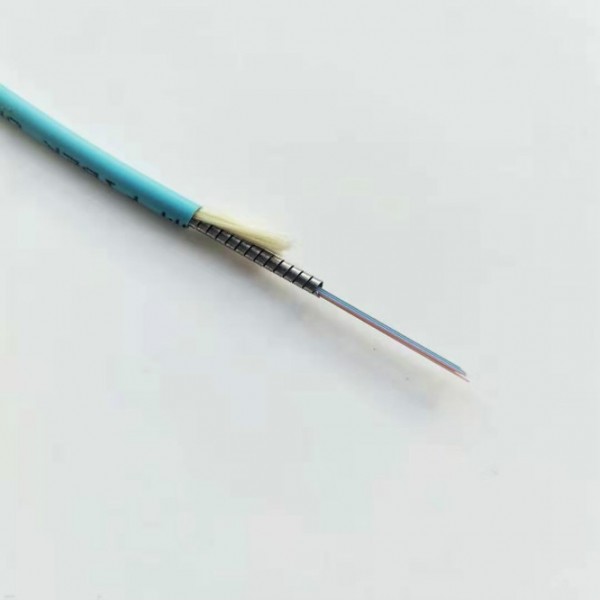

multicore FTTH Spiral metal armored optical fibre cable
APPLICATIONS
*Apply to all types of optical connectors
*Apply to pigtails and patch cords
*Apply to connectors in optical communication equipment rooms, distribution frames and FTTX
*Apply to optical appliances connection
*Apply to indoor horizontal or vertical cabling, multi-medium connection, LAN
*Apply to connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
*Apply to high density cabling
FEATURES
*Good mechanical and environmental characteristics
*Soft, flexible, Stable, easy to splice
*Flame retardant characteristics meet the requirements of relevant standards
*Improve existing function based on customers’ various requirements
CABLE PARAMETERS
STRUCTURE SIZE (TABLE ONE)
| Cable Count | ITEM | CABLE OD.mm(a) | S.S.T.OD.mm(b) | T.B.O.F.OD.mm(C) |
| 12 | 3 | Φ3.0±0.2 | Φ2.0±0.02 | Φ0.25 |
| 12 | 3.5 | Φ3.5±0.2 | Φ2.2±0.03 | Φ0.25 |
| 12 | 4.2 | Φ4.2±0.2 | Φ2.2±0.05 | Φ0.25 |
MECHANICAL PROPERTIES(TABLE TWO)
| ITEM | CABLE OD. mm(a) |
CABLE WEIGHT | MAXIMUM TENSILE | BEND RADIUS* | L.P. N/100mm |
||
| S.T. | L.T. | Dyn. | Sta | ||||
| 3 | Φ3.0±0.1 | 11.2 | 400 | 200 | 60 | 30 | 3500 |
| 3.5 | Φ3.5±0.2 | 15.4 | 800 | 400 | 70 | 35 | 3000 |
| 4.2 | Φ4.2±0.2 | 18.7 | 1000 | 500 | 90 | 40 | 3000 |
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm
