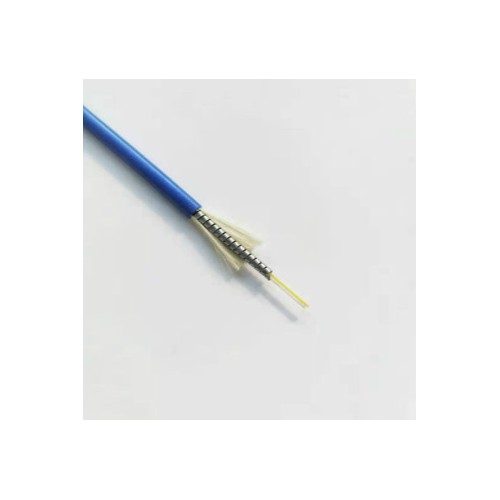

armored fibre optic cable

Original manufacturer provide you the high quality armored fiber optical cables, nice service, and good price!

Armoed Fibre Optic Cable OD:2.0mm/3.0mm/3.5mm/4.0mm/4.8mm

Armored Fibre Optic Cable type:Single mode /Multimode

Armored Fibre Optic Cable Color:white,black,blue,red,yellow,orange...etc.

More info

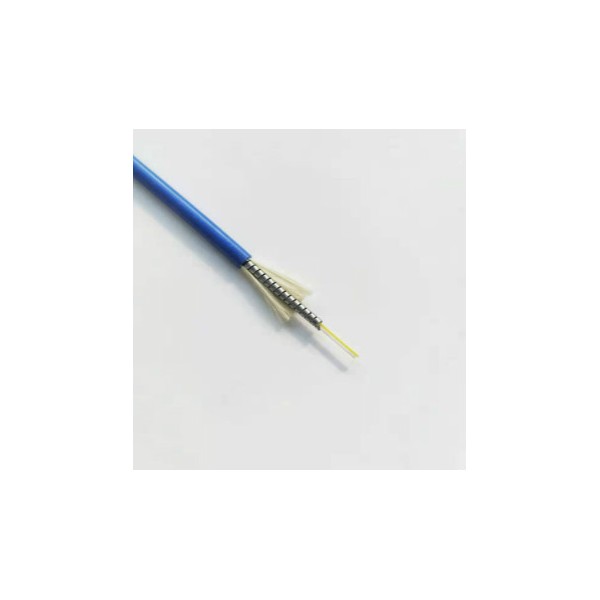

armored fibre optic cable

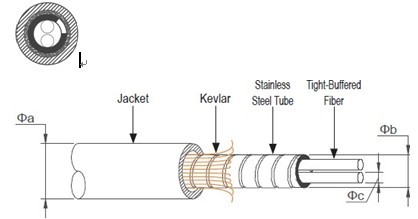

Structure for Armored Fibre Optic Cable

Armored Fibre Cable OD:2.0mm/3.0mm/3.5mm/4.0mm/4.8mm

Armored Fibre Cable type:Single mode /Multimode

Armored Fibre Cable Color:white,black,blue,red,yellow,orange...et

What is Armored Fibre Optic Cable?

1.Armored FO Cable,fibers were protectd by spiral metal tube.can protect the fibers bite from animal bite and other bad situation.

2.With differennct OD.Light weight and more flexible.

3.Not easy broken.

4.can be make to be SC LC ST FC... patchcord,MPO Trunk cable--longleng or short length. MPO breakout cable. PM patchcord.

also you can use only cables to make any patchcord you need.

Applications for Armored Fibre Optic Cable

1.For Fiber Network,Fiber Telephon network.

2.FTTA,FTTH,FTTX

3.Outdoor Indoor music event,Emergency situation.live.

4.security system,CATV,Broadcast

5.optical communication equipment rooms and distribution frames；

6.Used as optical apparatus connectors.

7.Used in poor condition outside cabling；

8.Used as pigtails and patch cords；

9.meet various requirementsmarket and clients.

FEATURES for Armored Fibre Optic Cable
*Good mechanical and environmental characteristics
*Soft, flexible, Stable, easy to splice
*Flame retardant characteristics meet the requirements of relevant standards
*Improve existing function based on customers’ various requirements

1111*The bending radius of G657 series fiber will be less than 15mm 222

Datesheet for 4.8mm armored fibre optic cable/Patch cord

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	2		2		2
Insertion Loss	0.2dB		0.2dB		0.3dB
MAX. TENSILE	S.T	800	L.T	400
Bend Radius	Dyn.	100	Stn.	50
Return Loss		≥50 dB		≥50 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃~+85℃		-40℃~+85℃		-40℃~+85℃
Insert-pull test	1000 times＜0.5 dB		1000 times＜0.5 dB		1000 times＜0.5 dB
Interchange	＜0.5 dB		＜0.5 dB		＜0.5 dB
Cable Weight	27kg/KM
Package	PE bag /wooden drum

More details for Armored Fibre Optic Cable

*Fiber Type: Single-mode fiber G652 G657, G655, Multimode fiber 50/125 62.5/125, OM3
*Jacket Material: LSZH, PVC, LSZH, TPU, ETFE etc
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube:SUS304, SUS204, or other contracted materials requests
*Other Requirements: other contracted

CABLE PARAMETERS
STRUCTURE SIZE (TABLE ONE)
ITEM	CABLE OD.mm(a)	S.S.T.OD.mm(b)	T.B.O.F.OD.mm(C)
3.0MM	Φ3.0±0.2	Φ1.8±0.05	Φ0.5
3.5MM	Φ3.5±0.2	Φ1.8±0.05	Φ0.5
4.8MM	Φ4.8±0.2	Φ2.4±0.05	Φ0.9

MECHANICAL PROPERTIES(TABLE TWO)
ITEM	CABLE OD. mm(a)	CABLE WEIGHT	MAXIMUM TENSILE		BEND RADIUS*		L.P. N/100mm
ITEM	CABLE OD. mm(a)	CABLE WEIGHT	S.T.	L.T.	Dyn.	Sta	L.P. N/100mm
3.0MM	Φ3.0±0.2	17.0	500.0	250.0	60.0	30.0	3000
3.5MM	Φ3.5±0.2	18.5	600.0	300.0	70.0	35.0	3000
4.8MM	Φ4.8±0.2	27.0	800	400	100	50	3000
