4 core single mode armored fiber optic cable

*CE,Rohs,ISO9001

*internationally standardized quality

*for Harshest Environments

*More strongee than fiber optic cable without metal tube protected.

Inquiry

4 core single mode armored fiber  optic cable


What is  4 core fiber optic cable?

just as the name implies,4core is 4 fibers cover in the cable tube.

4 core fiber optic cable color code is:Blue,orange, green, brown.



Fiber optic cable types

1.At begaining ：fiber optic cable  is most  use.it is only kevlar and jacket to protect the fibers.

2.As demand, amored fiber optic cable were Designed.not only kevlar and jacket to protect the fibers,but cover a layer of spiral armored metal tube to protect the fibers.it is also can use for Harshest Environments



Structures for 4 core armored fiber optic cable

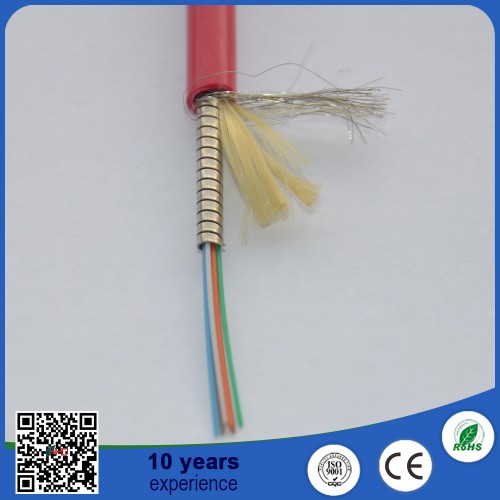

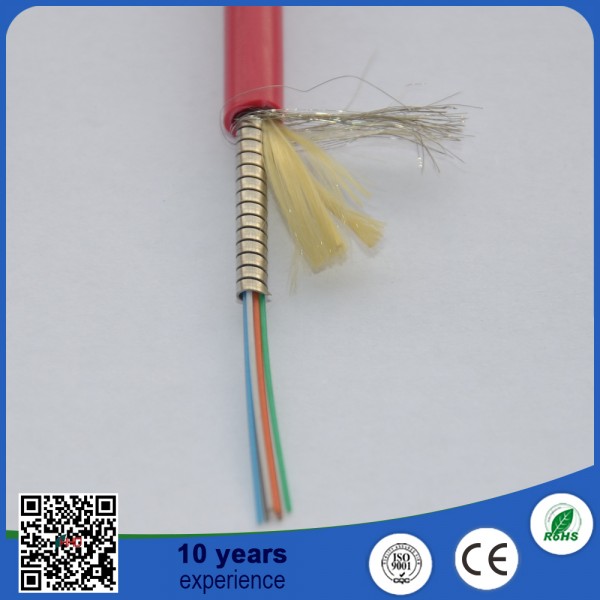

4fibers---spiral metal tube--kevlar--outet jacket


4 core armored cable Special Applications

*Broadcast,

*music events.

*militarly use

*outdoor emergency use

*fiber optic camera

*Live



 Features
*Multi-bare fibers used, to decrease the outer diameter and cable weight, also convenient for laying and splice；
*Cable using high property aramid yarn, increasing tension property, and fit for long distance use；
*Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend；
*Cable using metal braid, increasing twist property and tension property；
*All kinds of jacket material fit for any different environments.





4 CORE CABLE PARAMETERS

STRUCTURE SIZE (TABLE ONE)

Cable
  Count		 ITEM CABLE OD.mm(a) S.S.T.OD.mm(b) T.B.O.F.OD.mm(C)
4 core 4.5MM  Φ4.5±0.2  Φ2.4±0.02  Φ0.5
6 core 4.5MM  Φ4.5±0.2  Φ2.6±0.03  Φ0.5
8 core 5.0MM  Φ5.0±0.2  Φ3.0±0.05  Φ0.5
10 core 5.0MM   Φ5.0±0.25  Φ3.0±0.05  Φ0.5
12 core 5.5MM  Φ5.5±0.25  Φ3.2±0.05  Φ0.5
24 core 7.0MM  Φ7.0±0.3  Φ4.3±0.05  Φ0.5



MECHANICAL PROPERTIES(TABLE TWO)

ITEM CABLE OD.
mm(a)		 CABLE WEIGHT 　 BEND RADIUS* 　 L.P.

    N/100mm
S.T. L.T. Dyn.  Sta
4 core  Φ4.5±0.2  26.5 800 400 70 35 3000
6 core Φ4.5±0.2  28.5 1000 500 100 50 3000
8 core Φ5.0±0.2  33.0 1000 500 100 50 3000
10core Φ5.0±0.25 36.0 1000 500 120 60 3000
12core Φ5.5±0.25 39 1200 600 150 75 3000
24core Φ7.0±0.3  54.0 1500 750 170 85 3000



OD. = Outside Diameter S.T.=Short Term L.T.=Long Term Dyn. = Dynamic Sta. = Static
L.P. = Lateral Pressure S.S.T.OD.= Stainless Steel Tube Outside Diameter
T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm

*Other Requirements: other contracted special requests



4core cable Print
ARMORED   OPTICAL   CABLE  4S LSZH/PVC/PU..    ROHS     D.xx   0000M


Cable Length
Standard length: 500m 1000m 1500m


Environment protection certifications
RoHS

Packing
Free Packing
Standard roll (wooden pallet)
optional packing
Metal roll, with composite material box




DETAILS:

*Fiber Type: Single-mode fiber G652, G657, G655, Multimode fiber 50/125,62.5/125, OM3,
*Jacket Material: PVC, LSZH, TPU, ETFE etc.
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube: SUS304, SUS204, or other contracted materials requests
