ethernet switch 2×2 optical fibre micro switches

*Low Insertion Loss
*Wide Wavelength Range
*Low Crosstalk
*High Stability, High Reliability
*Epoxy-free on Optical Path
*Ltching and Non-latching

Inquiry

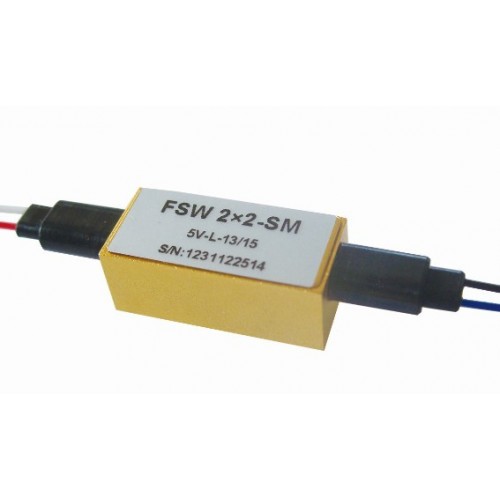

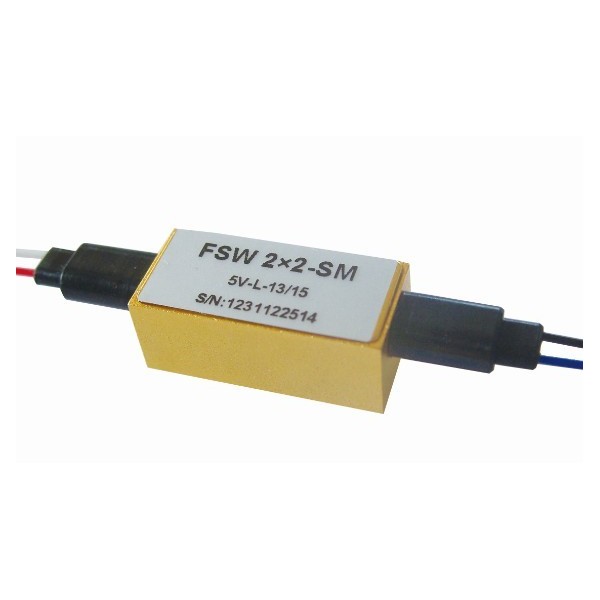

Optical Switch 2×2 fiber switcher



Features

*Low Insertion Loss
*Wide Wavelength Range
*Low Crosstalk
*High Stability, High Reliability
*Epoxy-free on Optical Path
*Ltching and Non-latching



Applications
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)



FSW 2×2 Optical Switch, which is famous for its high performance, low insertion loss and compact. It is an ideal component for OADM，OXC，system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system



Specifications

Parameters

Unit

FSW 2×2

WavelengthRange

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion
  Loss 1, 2

dB

<or=0.8dB

Return
  Loss 1, 2

dB

>or=55（SM）    >or=30（MM）

Crosstalk
  1

dB

>or= 55 dB

PDL

dB

<or=0.05

WDL

dB

<or=0.25

Repeatability

dB

<or=±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

>or=10 Million

Switching
  Time

ms

<or=8

Optical
  Power

mW

<or=500

Operating Temperature

C

-20 ~ +70

Storage
  Temperature

C

-40 ~ +85

Relative
  Humidity

%

5 ~ 95

Dimension

mm

(L)28.0×(W)12.6×(H)8.0 ±0.2

Note:   1  Within operating temperature and SOP.

           2.xcluding Connectors.

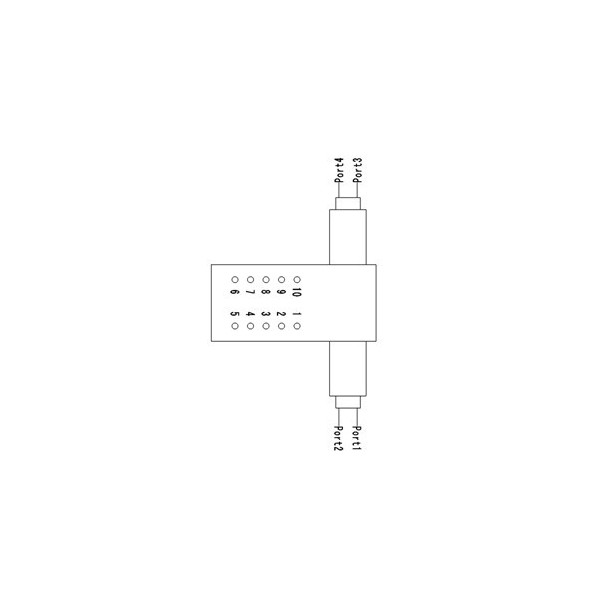

Pin Configurations

Optical Route

Electric Drive

Status Sensor

2×2

1

5

6

10

3－4  7－8

2－3  8－9

Latching

1-4 2-3

+5V

GND

N/A

N/A

CLOSE

OPEN

1-3 2-4

N/A

N/A

GND

+5V

OPEN

CLOSE

Non-latching

1-4 2-3

+5V

N/A

N/A

GND

CLOSE

OPEN

1-3 2-4

N/A

N/A

N/A

N/A

OPEN

CLOSE

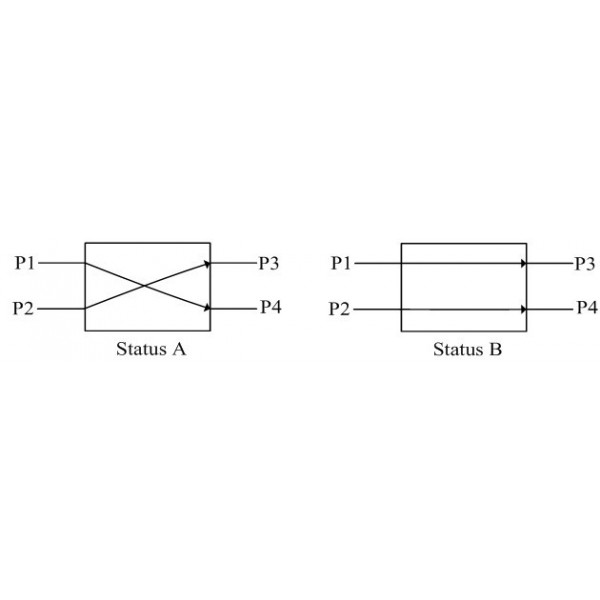

Optical Route (pease see the picture)

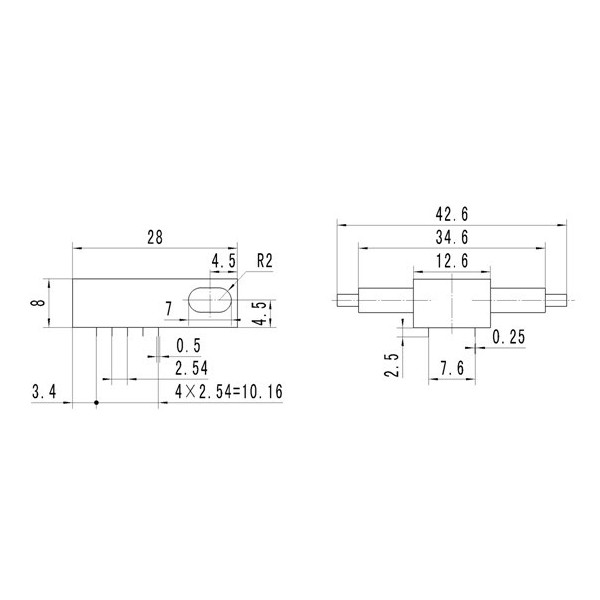

Dimension(pease see the picture)



Ordering Information:  FSW 2×2-A-B-C-D-E-F-G



A

B

C

D

E

F

G

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

SM: SM, 9/125

M5:MM,
  50/125

M6:MM,
  62.5/125

X: Others

3: 3V

5: 5V



L: Latching

N: Non-latching

850: 850nm

1310: 1310nm

1550: 1550nm

1310/1550:1310/1550nm

X:Others

25:250um

90:900um

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others
