Home>Optical Switch>fiber optic switch D1×2

fiber optic switch D1×2

*Low Insertion Loss
*Wide Wavelength Range
*Low Crosstalk
*High Stability, High Reliability
*Epoxy-free on Optical Path
*Latching and Non-latching

Inquiry

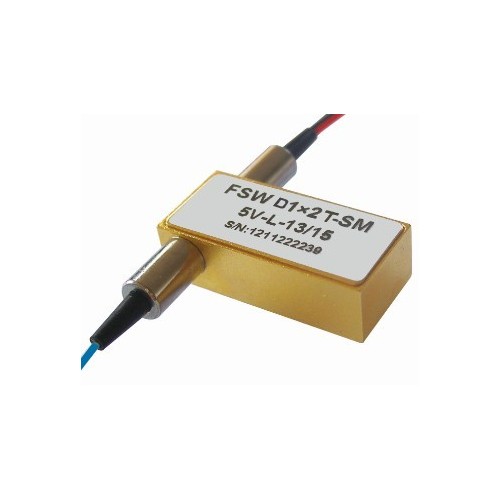

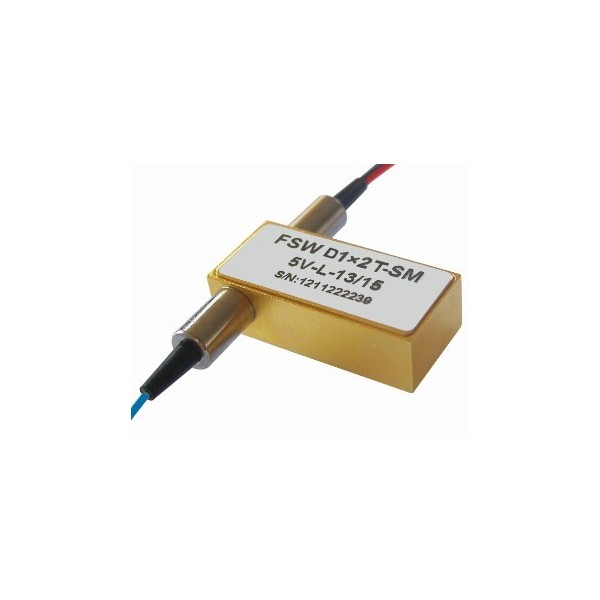

Optical Switch D1×2 Switch hub



Applications
1.R&D in Laboratory
2.System Monitoring
3.OADM
4.MAN (Metropolitan Area Network



Features

*Low Insertion Loss
*Wide Wavelength Range
*Low Crosstalk
*High Stability, High Reliability
*Epoxy-free on Optical Path
*Latching and Non-latching



FSW D1×2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.0mm. It is an ideal component for OADM，OXC，system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.


Specifications

Parameters

Unit

FSW D1×2

WavelengthRange

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1300

1310 / 1550

Insertion Loss 1, 2

dB

≤1.0 dB

Return
  Loss 1, 2

dB

SM ≥55   MM≥ 30

Crosstalk
  1

dB

SM ≥55   MM≥ 35

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching
  Time

ms

≤8

Optical
  Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage
  Temperature

℃

-40 ~ +85

Relative
  Humidity

%

5 ~ 95

Weight

g

14

Dimension

mm

(L)27.0×(W)12.6×(H)8.0 ±0.2

Note:   1  Within operating temperature and SOP.

            2  Excluding Connectors.

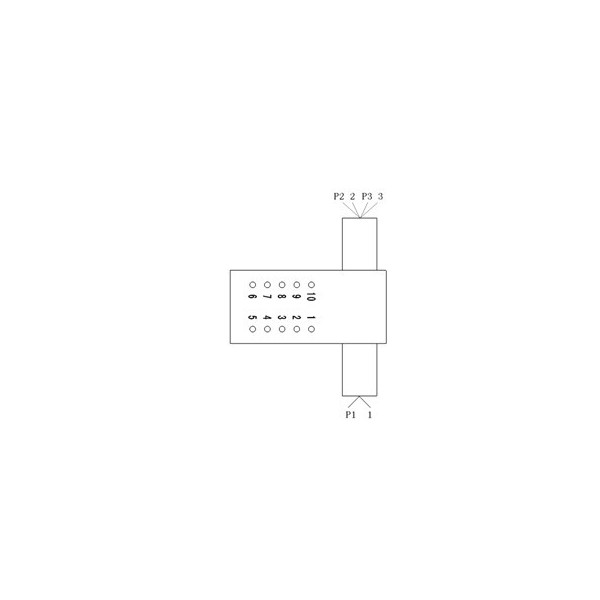

Pin Configurations

Optical Route

Electric Drive

Status Sensor

D1×2

1

5

6

10

3－4  7－8

2－3  8－9

Latching

P1-P2、1-2

+5V

GND

N/A

N/A

CLOSE

OPEN

P1-P3、1-3

N/A

N/A

GND

+5V

OPEN

CLOSE

Non-latching

P1-P2、1-2

+5V

N/A

N/A

GND

CLOSE

OPEN

P1-P3、1-3

N/A

N/A

N/A

N/A

OPEN

CLOSE

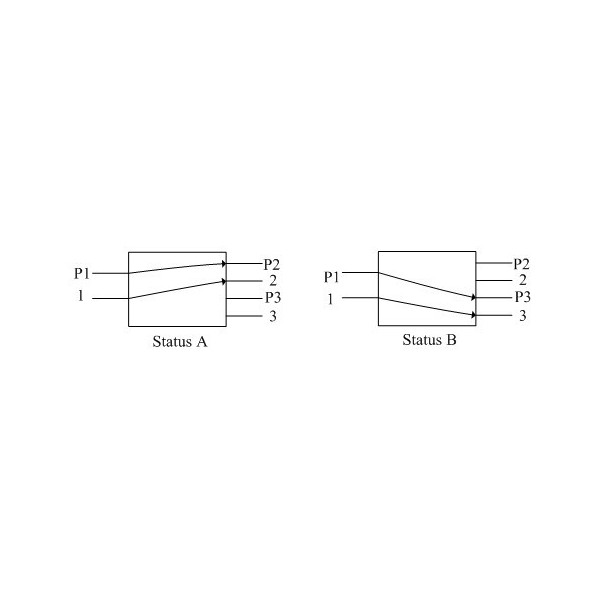

Optical Route (Picture)

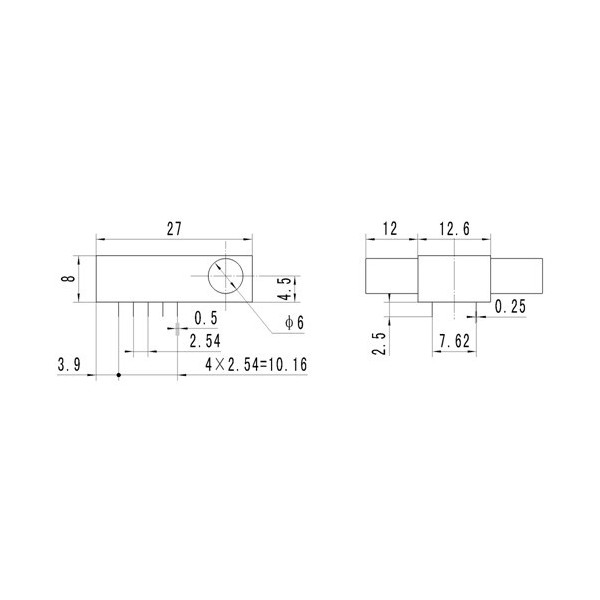

Dimension(Picture)



Ordering Information:  FSW D1×2-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

SM: SM, 9/125

M5:MM,
  50/125

M6:MM,
  62.5/125

X: Others

3: 3V

5: 5V



L: Latching

N: Non-latching

850: 850nm

1310: 1310nm

1550: 1550nm

1310/1550:1310/1550nm

X:Others

25:250um

90:900um

X: Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others
