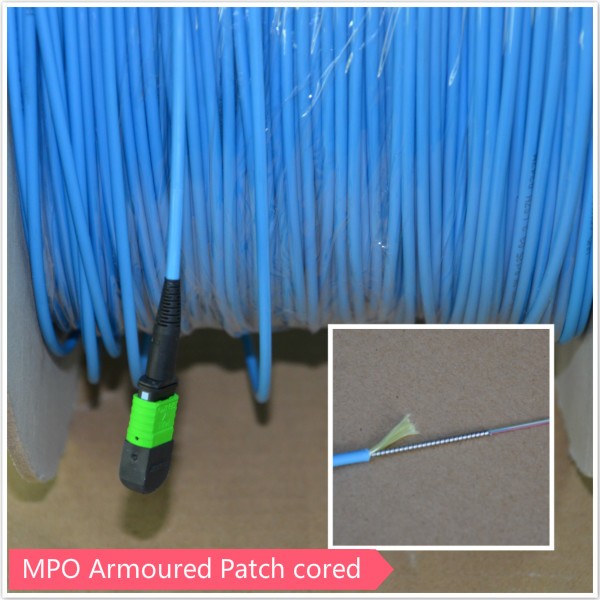

mpo mtp mini micro armoured fiber optic patch cord cable

12fiber MPO/MTP Trunk cable

Inquiry

12fiber MPO/MTP Trunk cable



1. High Performance in IL & RL

2.  4,8,12 and 24 fiber connector terminations and assemblies

3. Designed for low loss and standard loss SM and MM applications

4. Economical solution for mass-termination of fiber

5. Suitable for MPO/MTP application

6. Ruggedized round cable, oval cable and bare ribbon options available

7. Color coded housings available to differentiate fiber type, polish type and/or connector grade





MPO/MTP Associated Standards:

*Meets IEC Standard 61754-7& JIS C5982

* Meets IEC Standard 61754-7& JIS C5982

* Parallel Optics

-- - Optical Internetworking Forum (OIF) Compliant

----  Infiniband Compliant

* Infiniband

  - 10G Fiber Channel Compliant

  - 40G and 100G IEEE 802.3

  - QSFP





MPO MTP Applications:



*Optical switching interframe connections

*High fiber density card edge access

*Array trunk cables

*Datacenter cabling



Associated Standards:

*Meets IEC Standard 61754-7& JIS C5982

* Meets IEC Standard 61754-7& JIS C5982

* Parallel Optics

-- - Optical Internetworking Forum (OIF) Compliant

----  Infiniband Compliant

* Infiniband

  - 10G Fiber Channel Compliant

  - 40G and 100G IEEE 802.3

  - QSFP



Armored cable Features



1.Mouseproof, Anti-Tensile,Anti-pressure,
2.Resistant  Improper reverse bending damage,
3.Easy Construction,
4.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.



Application



1.Pigtails and patch cords
2.Connections of optical communication equipment rooms, distribution frames and FTTX
3.Optical appliances connection
4.Indoor horizontal or vertical cabling, multi-medium connection, LAN
5.Connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
6.Telecommunication
7. CATV
8. Network
10. Broadband



mpo/mtp trunk cable Datesheet



Fiber Type Singlemode(APC Polish) Multimode(PC/Flat Polish)
Parameter Standard Low loss Standard Low loss
Insertion Loss Maximum <0.70 <0.35db <0.70dB <0.35dB
Retrurn Loss >60dB None
Durability 500Matings
Operating Temperature -40C to 80C
Test Wavelength 1310nm 850nm





Specifications&Performances Armored cable



Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
12 3.0 Φ3.0±0.2 Φ2.0±0.02 Φ0.25
12 3.5 Φ3.5±0.2 Φ2.2±0.03 Φ0.25
12 4.2 Φ4.2±0.2 Φ2.2±0.05 Φ0.25





ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT		 MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta
3.0 Φ3.0±0.1 11.2 400 200 60 30 3500
3.5 Φ3.5±0.2 15.4 800 400 70 35 3000
4.2 Φ4.2±0.2 18.7 1000 500 90 40 3000





 Why Choose Us?



 HHD Communicaton Technology limited belong to SHENZHEN HHD TECHNOLGY LIMITED, build in 2006,with 10 yeares experience in this field.HHd sinerely offer the best service and good quality & competitive price for you.



1. Ceramic ferrule ,we use CCTC and A type ferrule.

2. stainless steel tube,we choose SUS304

3. we produce the cable ourselves, can control the cost.and the parts we won't change suppliers,so there is guarantee of quality.

4. fast deliver date:3-15 working days.if in emergency,need to let us know.we will try the best to arrange the priority for you.

5. Express offer DHL,TNT,Fedex,we coopate with the forwarding company many years ,good service and cheaper shipping cost will be offer to you. customer availble to request the forwardng  company.



At the last,Wish you Happy shopping online!
