MPO to lc singlemode fiber patch cord

1.Low insertion loss, high return loss
2.Good compatibility
3.Standard: GR-1435-CORE compliant
4.Clean and scratch-free end face
5.High quality

6.US CONECT

Inquiry

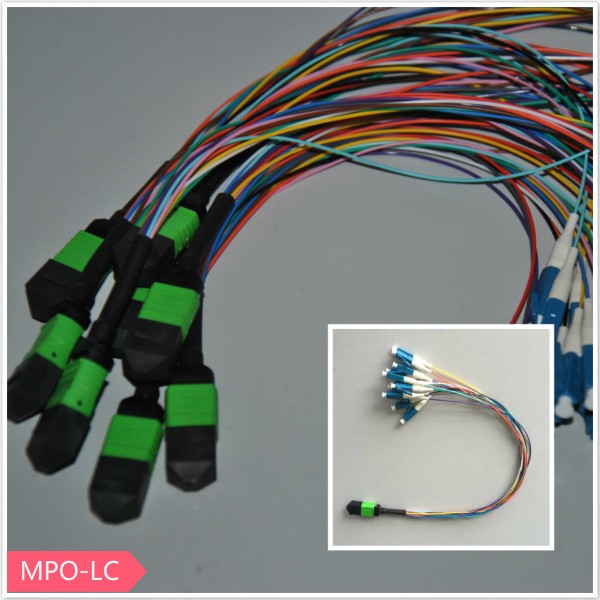

MPO to lc fan-out fiber optic patchcord





Application:
1.Fiber optic Local Area Networks
2.CATV System
3.Telecommunication Networks
4.Access Network, Telecom, Gigabit Data Network

Feature:
Long-distance trunk network,
2.Metro- area network,
3.access network
4.DWDM system Optical fiber
5.CATV Optical fiber data network
6.Optical active device.


Specification:
1.Insertion loss: ≤0.2dB
2.Return loss: ≥50dB
3.Repeatable: 0.1dB (1000)

 Fiber Optic Patchcords / pigtails

Application :LAN Telecommunications, Data Cmmmunications, Component termination, CATV

Specifications

· High Repeatablity &Stability

· OD of cable:0.9mm,1.6mm,2.0mm,3.0mm…

· Cable Type:PVC,LSZH,OFNP,OFNR

· Fiber Type:9/125um 50/125,62.5/125um

Parameter

Connectors

UPC/PC(SM)

APC(SM)

PC(MM)

Reture Loss(dB)

≥50

≥60

≥35

Insertion Loss(dB)

≤0.2

≤0.3

Repeatability(dB)

≤0.1(1000matings)

Operating Temperature(°C)

-40~+80

Tensile Strength(N)

≥90(Φ3.0),≥70(Φ2.0)
