Home>Splitter>Mini Optical Splitter>SC UPC FTTH Optical Splitter 2 in 1 out

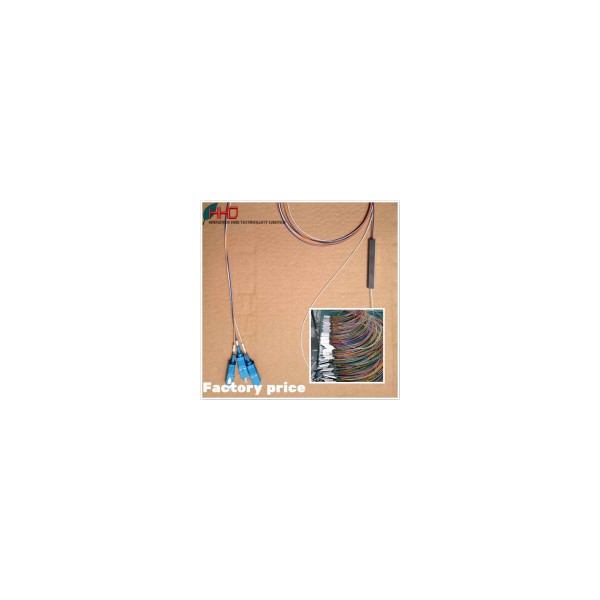

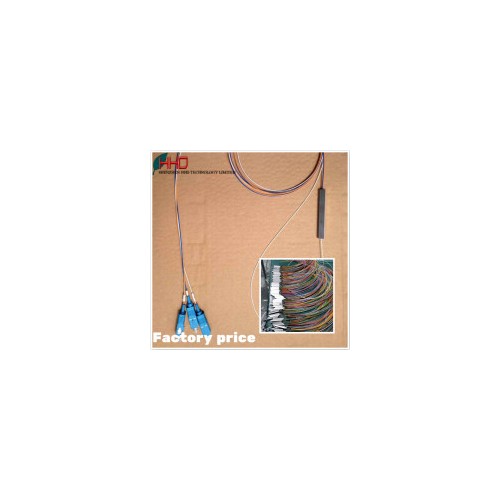

SC UPC FTTH Optical Splitter 2 in 1 out

1.1x2 mini type plc splitter

2.High qaulity

3.Factory price

4.Use for FTTX,FTTX,CATV...ETC

5.Fast delivery

Inquiry

SC UPC FTTH  Optical Splitter 2 in 1 out (1x2)



Features


 Uitra-end insertion loss and associated loss of polarization
    Goodspectral uniformity
    Wide wavelength bandwidth
    A wide range of working environment
    High reliability
    Small size

Applications:
   Micro plc 1x2 bare plc/micro plc
    Can be widely used for FTTX
    Passive Optical Network (OPN)
    Cable TV Network (CATV)
   Other optical signal splitter system

1x2 Mini Optical Splitter

Parameter   Unit Specification
Operating Wavelength   nm 1260-1650
Insertion Loss (Max.) P grade db <3.8
S grade <4.0
PDL   db <or=0.2
Uniformity   db <or=0.6
Return Loss(Min.) P grade db >or=55
S grade >or=50
Directionality   db >or=55
Wavelength dependent loss   db <or=0.5
Temperature dependent loss
(-40Cto +85C)		   db <or=0.5
Fiber Length   m 1,1.5(+or-0.1)or other
Fiber Type     G657A customer request
Operating/Srorage Temperature   C -40C-+85C
Packing Size(L*W*H)   mm 40X4X4
(mini bare fiber)		 60x7x4
(Mini type)
