Home>Splitter>2 x 16 sc apc passive mini splitter

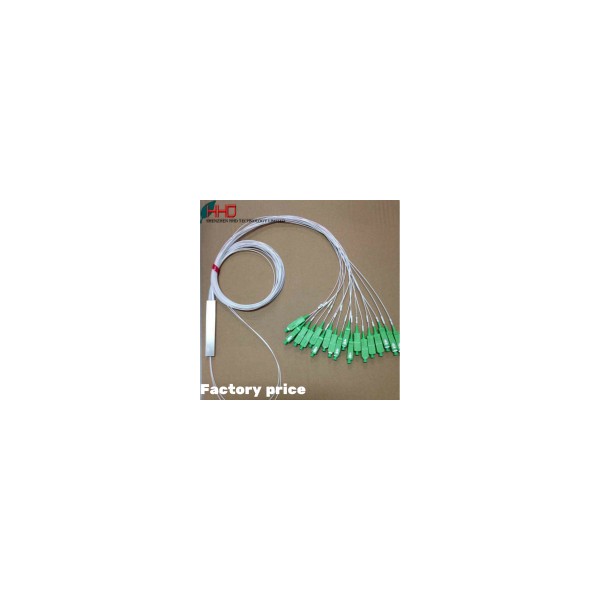

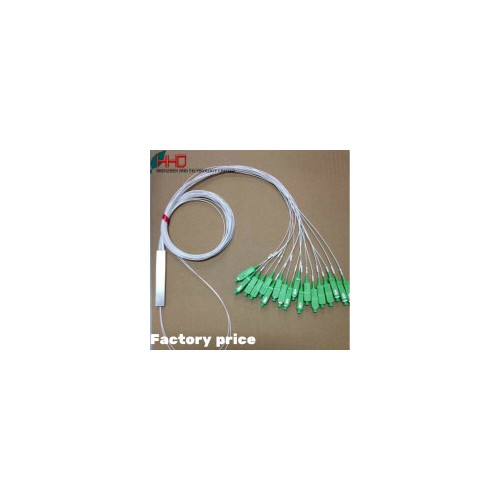

2 x 16 sc apc passive mini splitter

1.2 x 16 sc apc passive mini splitter

2.Top high quality

3.factory price

4.fast delivery

Inquiry

2 x 16 sc apc passive mini splitter





Features

fiber optic bare device and splitter box
Uitra-end insertion loss and associated loss of polarization
    Goodspectral uniformity
    Wide wavelength bandwidth
    A wide range of working environment
    High reliability
    Small size

Applications:
fiber optic bare device and splitter box
    Can be widely used for FTTX
    Passive Optical Network (OPN)
    Cable TV Network (CATV)
    Other optical signal splitter system

Specifications&Performances
2 x 16 sc apc passive mini splitter

Parameter 　 Unit Specification
Operating Wavelength 　 nm 1260-1650
Insertion Loss （Max.） P grade db <14.2
S  grade <14.5
PDL 　 db <or=0.4
Uniformity 　 db <or=1.8
Return Loss（Min.） P grade db >or=55
S  grade >or=50
Directionality 　 db >or=55
Wavelength dependent loss 　 db <or=0.5
Temperature dependent loss
（-40Cto +85C）		 　 db <or=0.5
Fiber Length 　 m 1,1.5(+or-0.1)or other
Fiber Type 　 　 G657A customer request
Operating/Srorage Temperature 　 C  -40C-+85C
Packing Size（L*W*H） 　 mm 65x7x4
(mini bare fiber)		 80x12x4
(Mini type)		 120x80x18      (Box type)
