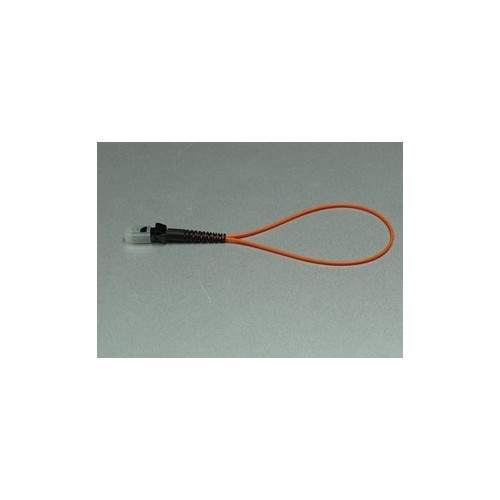

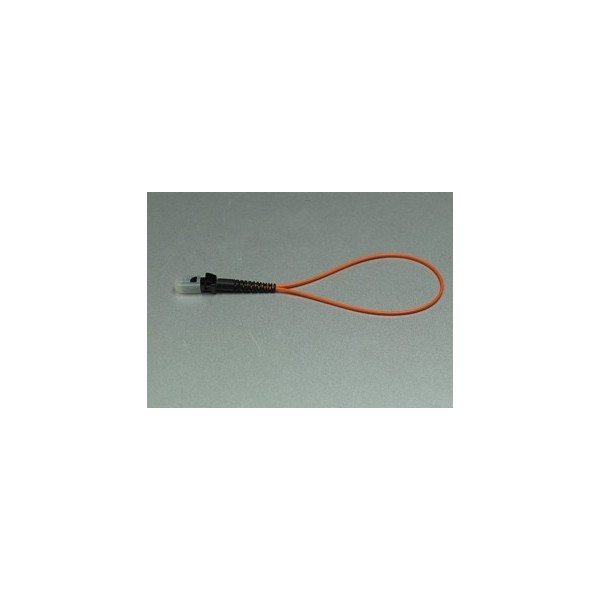

MTRJ/PC Fiber optical loopback

1.MT style ferrule with RJ-45 style housing with push-pull coupling mechanism which easy used for insert - pull of coarctation space
2.One ferrule accommodates two fibers
3,Small form connector - Half the size of duplex SC connectors
4,Comply with Telcordia GR-1435-CORE and RoHS Standard

Inquiry

MTRJ/PC Fiber optical loopback

Features

*MT style ferrule with RJ-45 style housing with push-pull coupling mechanism which easy used for insert - pull of coarctation space
*One ferrule accommodates two fibers
*Small form connector - Half the size of duplex SC connectors
*Comply with Telcordia GR-1435-CORE and RoHS Standard

Specifications

Item Single mode Multi mode
Fiber diameter 9/125um 62.5/125um 50/125um
Insertion loss PC ＜0.3dB PC＜0.7dB
Return loss PC＞40dB PC ＞25dB
Insert–pull test (1000times) ＜0.3dB
Operation temperature -40℃~ +80℃
Anti-tensile force 15kgf



Ordering Information

MTRJ Type MTRJ/PC Single mode/Multi mode optic fiber loop-back  2.0mm boot
