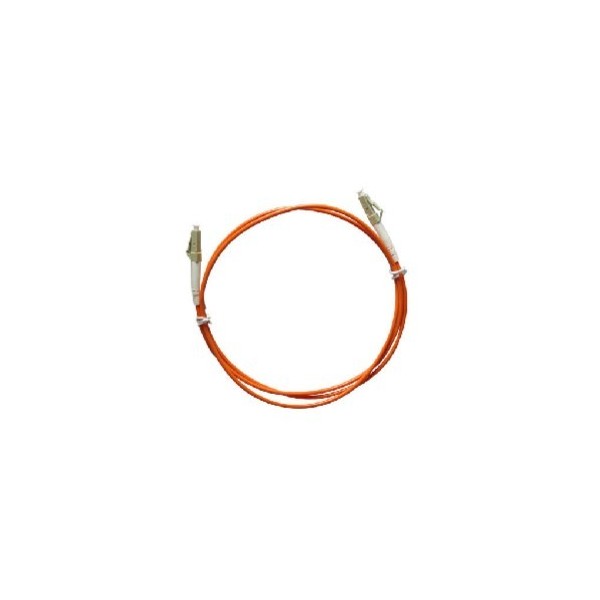

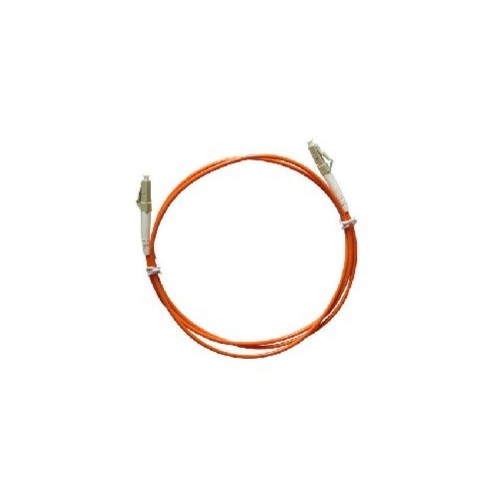

lc connector MM dual core amd patch cord

*Low insertion loss, high return loss
*Good compatibility
*High precision of mechanical dimensions
*High reliability & stability

Inquiry

lc connector MM dual core amd patch cord



Characteristics:
*Low insertion loss, high return loss
*Good compatibility
*High precision of mechanical dimensions
*High reliability & stability
*APC、UPC optional,Cable length optional:1M,2M,3M,4M..Others
*Options available for cable colors


Specification

Item Single mode Multi mode
Fiber diameter 9/125um 62.5/125um 50/125um
Insertion loss UPC＜0.3dB 　APC＜0.2dB UPC＜0.3 dB
Return loss UPC＞45 dB 　APC＞60 dB UPC＞25 dB
Insert–pull test (1000 times)＜0.3 dB
Interchange ＜0.2 dB
Operation temperature -40C ~ +80C
Anti-tensile force 15kgf



Ordering Information:

*Connector:FC,SC,LC,MU...others

*U:UPC, A:APC

*SM:Singlemode,  MM6:Multimode 62.5/125um

  MM5:Multimode 50/125, OM3:Multimode OM3

*SX:Simplex, DX:Dulex

*Fiber diameter:0.9,2.0,3.0

*Length :1M,2M,3M,4M...Others.

*P:PVC,L:LSZH.
