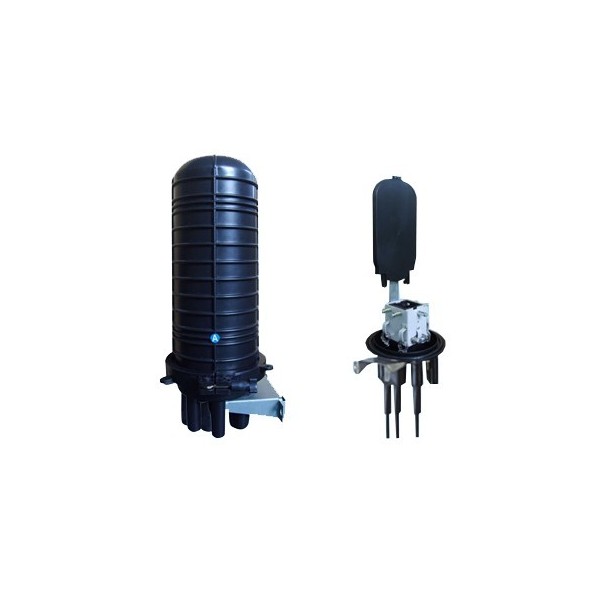

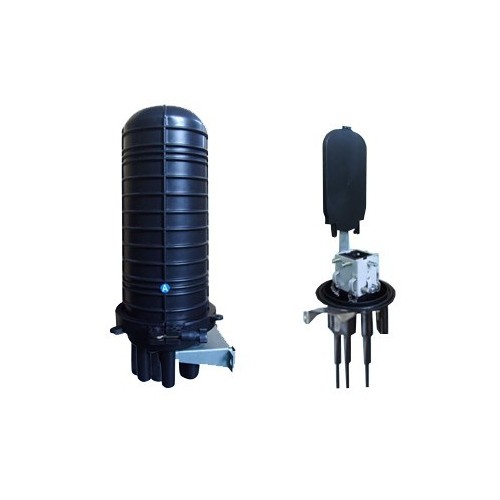

Fiber Joint Closure LF02
1.Maximum capacity: 288 cores
2.Number of inlet/outlet ports: 5 pieces in general.
3.Optical fiber winding radius: ≥40mm
4.Extra loss of fiber tray:≤0.01dB
5.Fiber length left in tray:≥1.6m
Categories
Fiber Joint Closure LF02
Applications:
Used for communication, network system, cable TV of CATV, fiber-optic cable by network
Features:
Used for communication, network system, cable TV of CATV, fiber-optic cable by network
Features:
Material: high quality PPR.
Purpose: aerial, direct-burying, wall-mounting, pipeline laying way
Suitable for both single core and ribbon fibers.
Purpose: aerial, direct-burying, wall-mounting, pipeline laying way
Suitable for both single core and ribbon fibers.
Module design of splice tray and fixing bracket could simplify the installation.
Environmental temperature: -40℃ to +85℃
Atmospheric pressure: 70-106Kpa
Specifications：
Dimension: 470 x 230 x 160 mm
Weight: 5.2kg
Structure: split type (quick installation)
Maximum capacity: 288 cores
Number of inlet/outlet ports: 5 pieces in general.
Optical fiber winding radius: ≥40mm
Extra loss of fiber tray:≤0.01dB
Fiber length left in tray:≥1.6m
Dimension: 470 x 230 x 160 mm
Weight: 5.2kg
Structure: split type (quick installation)
Maximum capacity: 288 cores
Number of inlet/outlet ports: 5 pieces in general.
Optical fiber winding radius: ≥40mm
Extra loss of fiber tray:≤0.01dB
Fiber length left in tray:≥1.6m
