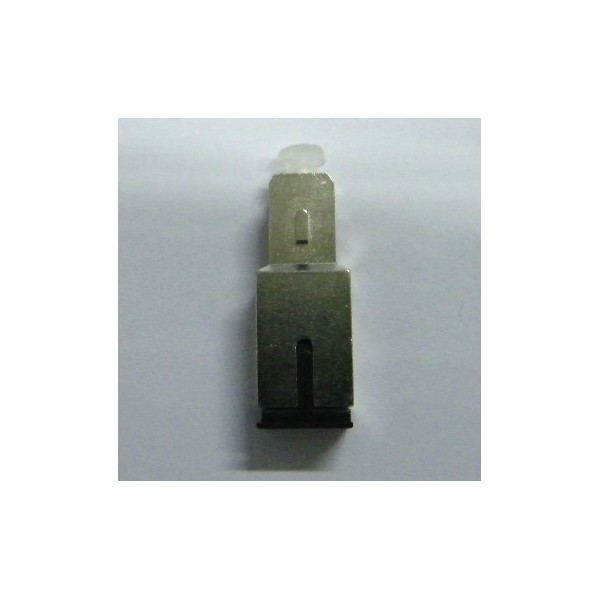

Female to Male Fiber Optical Attenuator: SC

1.Types: FC, SC, ST, LC, MU, MTRJ etc.
2.Attenuation levels ranging: 1 to 30dB
3.Tolerance: 1 to 5 ±0.5dB and 6 to 30dB ±10%
4.Low back reflection
5.High power endurance
6.With metal-ion doped fiber
7.Maximum stability, reliability and flat spectral response
8.Easy to connect and disconnect (RJ latch)
9.High mechanical resistance


Inquiry

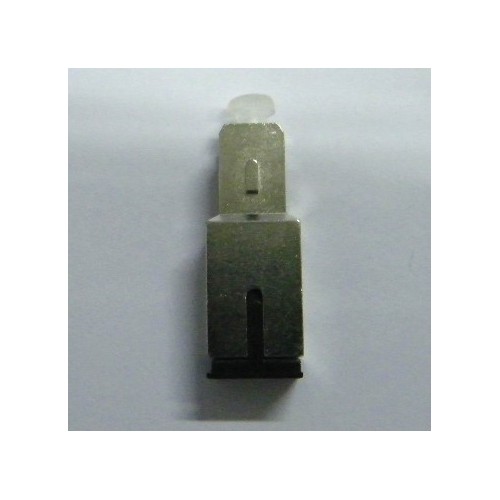

Female to Male Fiber Optical Attenuator: SC

Key Specifications/Special Features:

1.Types: FC, SC, ST, LC, MU, MTRJ etc.
2.Attenuation levels ranging: 1 to 30dB
3.Tolerance: 1 to 5 ±0.5dB and 6 to 30dB ±10%
4.Low back reflection
5.High power endurance
6.With metal-ion doped fiber
7.Maximum stability, reliability and flat spectral response
8.Easy to connect and disconnect (RJ latch)
9.High mechanical resistance

Applications:
*Passive optical networks
*Overpower fiber optic systems
*Opticalpower receiver's protections
*Multi-wavelength systems balancing
*EDFA loop tests and measurements



General Specifications

Model Items Single Mode Multimode
Operation
  Wavelength		 1310nm and 1550nm 850nm or 1300nm
Attenuation
  Accuracy		 0 to 5db+-0.5db 0 to 5db+-0.5db 0 to 5db+-0.5db
>5db  +-10% of attenuation value  +-10% of attenuation value
Return
  Loss		 UPC >or=50db >or=35
APC >or=60db N/A
Operating
  Temperature		  -40C to +75C



Ordering Information



PAT Type Attenuation
  Value		 Wavelength Fiber type
Multimode FC,SC,ST,LC,MU 1~30db 850nm/1300nm 50/125

    62.5/125
Single Mode FC,SC,ST,LC,MU(UPC/APC) 1~30db 1310nm & 1550nm 9/125
